Products For Agri Sector
Products For Agri Sector

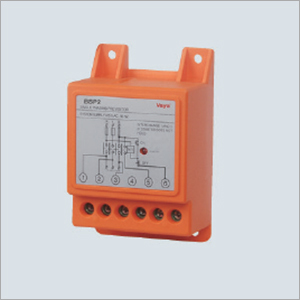

Product Code : BSP2
Product Description
Products For Agri Sector
These relays are suitable for monitoring incoming 3-phase supply from mains (electricity) distributionline). Being independent of load. They can be used forany HP/KW rating of load.
Feature
- Fixed/ adjustable unbalance setting
- Fixed/ adjustable under voltage/ over-voltage setting
- Fixed/ adjustable trip delays
- Built in or external power supply
- Resetting Auto/ Manual/ Remote
- Output contacts: 1 CO or 2 CO
- Choice of enclosures (Din-Rail Plug-in)
- Models with Micro Controller based design
- Use friendly LED indications
Protections/ Functions
- Phase Failure (Phase Loss/ Single Phasing)
- Phase sequence reversal
- Voltage unbalance
- Under voltage
- Over Voltage
- Dry Run
| Supply voltage | System | 50/60 Hz |
| Auxiliary | 100/120/220/240/380/440V AC ±20% | |
| Output Contacts | 2 CO | |
| Trip setting (volts) | Phase sequence | Yes |
| Phase unbalance | 30V to 70V ± 6V (fixed) | |
| Trip Time Delay | On phase failure unbalance | 3.5 sec ± 1.5 sec. |
| For level sensing | NA | |
| Resetting mode | Auto/ Manual/ Remote | |
| Weight | 285 gms. | |
| Dimensions (mm) | Overall (LxWxD) | 76x56.5x117 |
| Mounting (LxW) | 67x46/35mm rail mounting | |
