Liquid Level Controllers

Liquid Level Controllers
Liquid Level Controllers
Product Code : BWLC B1
Product Description

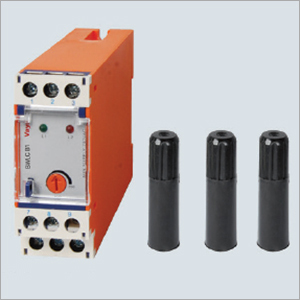

Liquid Level Controllers

These are suitable for conductive liquids like water and for non-conductive liquids like Diesel/Oil. Models for either one level monitoring or two level monitoring.

Features

  • Can Be Used for Potable Water, Water With Impurities and for Diesel/oil
  • Cable Size & Length No Restriction for Water Level Monitoring
  • Suitable for Variety of Electrodes
  • Optical Sensing for Diesel/oil Level Monitoring
  • Choice of Enclosures (Din-rail, & Plug-in)

Protections / Functions

  • Level Monitoring of Conductive and Non-conductive Liquids
  • One Level or Two Level Monitoring
  • One Tank or Two Tank Level Monitoring

Auxiliary Supply

24 VAC/DC/100-120/220-240/380-440 V AC ± 10%, 50/60 Hz

Output Contacts

1 CO

Input sensors

3 Electrodes

Sensitivity

1K Ώ-200 K Ώ (adjustable)

Trip Time Delay

Less than 1 sec.

Weight

Unit

217 gms.

Sensor (each)

50 gms.

Dimensions (mm)

Overall (LxWxD)

75.5x30x117

Mounting (LxW)

68mm centre to centre/ 35mm rail mounting

Sensor (mm)

Overall

24 (Dia)x76 (L)
