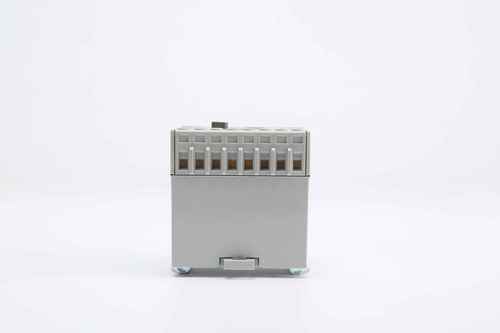

Digital Electronic Overcurrent Relay

Digital Electronic Overcurrent Relay
Digital Electronic Overcurrent Relay
Product Code : 8S0A2820
Product Description

Our offered Digital Electronic Overcurrent Relay is one of the simplest ways for protecting the line from over current. It owes its usage during an elevation in the current that will also result in the increase of the load. Be it instantaneous, time or inverse time over-current relays, we offer all the kinds, depending upon the requirement.

Protection:


Trip Time

Protective Item

3DM

3MS

3MZ

Over-current

DEF: 02 ~ 3.0 sec, INV: 1 ~ 30

DEF: 02 ~ 3.0 sec, INV: 1 ~ 30

DEF: 02 ~ 3.0 sec, INV: 1 ~ 30

Under-current

0.5 ~ 3.0 sec(DEF)

0.5 ~ 3.0 sec(DEF)

0.5 ~ 3.0 sec(DEF)

Phase Loss

3 sec

3 sec

3 sec

Phase reversal

0.1 sec

0.1 sec

0.1 sec

Phase Unbalanced

8 sec

8 sec

8 sec

Locker Rotor

Lock

0.5 sec after dt

0.5 sec after dt

0.5 sec after dt

Stall

1 ~ 10 sec

1 ~ 10 sec

1 ~ 10 sec

Ground Fault

-

-

0.1 ~ 10 sec

Specification:

Model


3DM

3MS

3MZ

Current Setting Range

Over-Current(oc)

Refer to, Table #1

Refer to, Table #1

Refer to, Table #1

Under-Current(uc)

0.5 ~ under OC setting

0.5 ~ under OC setting

0.5 ~ under OC setting

Ground Fault Current(Ec)

-

-

A : 0.03 ~ 2.5A / B : 0.5 ~ 10A

Time Setting

Starting Delay Time(dt)

OFF ~ 200sec

OFF ~ 200sec

OFF ~ 200sec

Over-Current Trip Delay(ot)

DEF : 02 ~ 3 0sec / INV : 1 ~ 30

DEF : 02 ~ 3 0sec / INV : 1 ~ 30

DEF : 02 ~ 3 0sec / INV : 1 ~ 30

Under-Current Trip Delay(ut)

0.5 ~ 3 0sec(DEF)

0.5 ~ 3 0sec(DEF)

0.5 ~ 3 0sec(DEF)

Ground Fault Trip Delay(Et)

-

-

0.1 ~ 10 sec

Control Power

220

85 ~ 250VAC / DC, 50/60 Hz

85 ~ 250VAC / DC, 50/60 Hz

85 ~ 250VAC / DC, 50/60 Hz

Output Relay

OL

2-SPST, 3A/250VAC, Resistive

2-SPST, 3A/250VAC, Resistive

1-SPST, 3A/250VAC, Resistive

AL(GR/SC)

1-SPST(AL)

1-SPST(S.C)

1-SPST(GR)

Environment

Temperature

Store

-3 0°C ~ 80°C

-3 0°C ~ 80°C

-3 0°C ~ 80°C

Operation

-2 0°C ~ 60°C

-2 0°C ~ 60°C

-2 0°C ~ 60°C

Humidity

30 ~ 85RH, Without condensation

30 ~ 85RH, Without condensation

30 ~ 85RH, Without condensation

Display

7-Segment LEDs




Bar-Graph




Mounting


35mm Din-rail

35mm Din-rail

35mm Din-rail

35mm Din-rail
